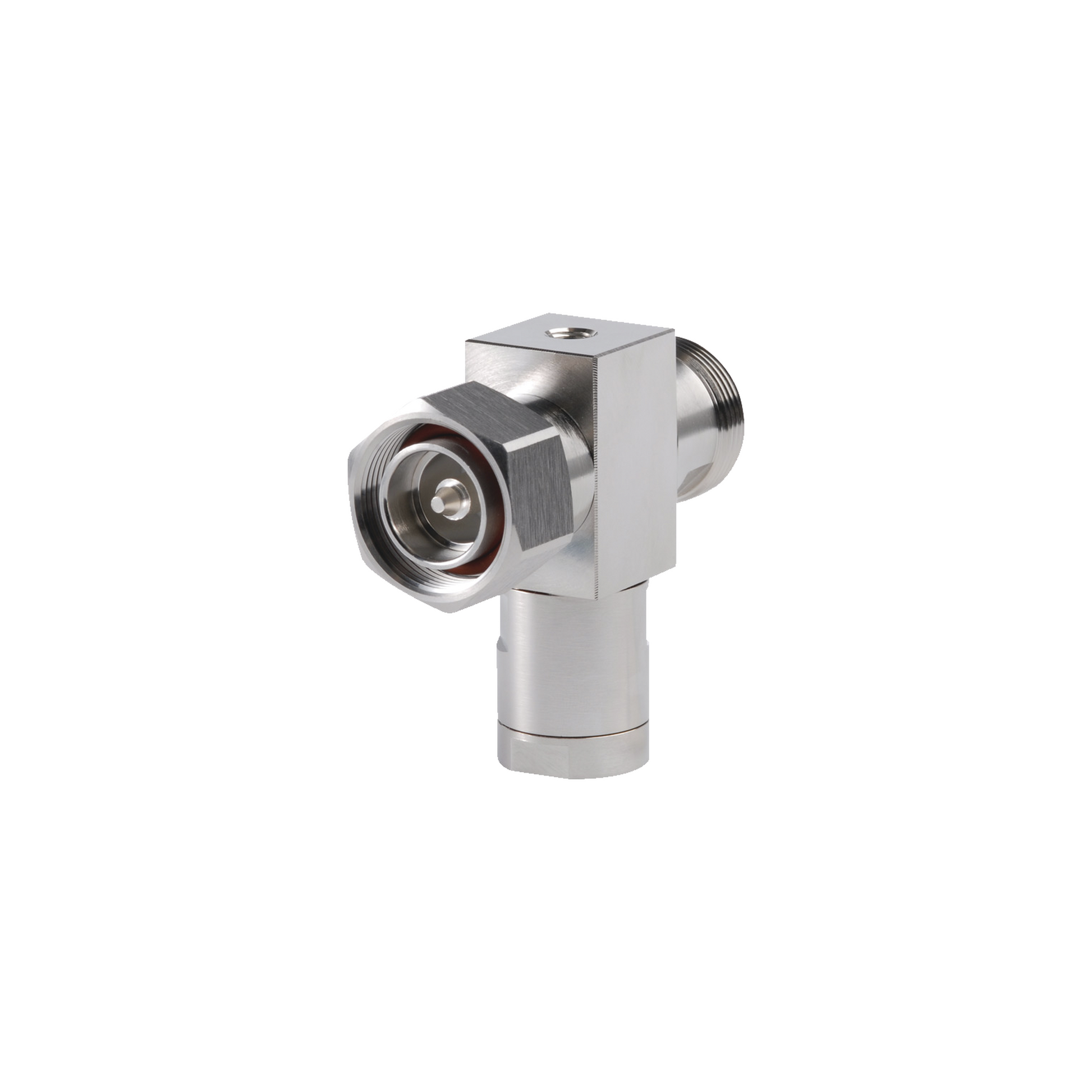

Arrestor Plus® Dual Band Quarterwave Surge Arrestor (T-shaped), 806–960 MHz and 1700–2170 MHz, with interface types DIN Female and DIN Male

APT-DFDM-DB

$ 1,538.87 MXN
$ 1,538.87 MXN
Oferta Agotado
Impuestos incluidos. Envío calculado en la caja.
  • Envío Express
  • Hasta 5 Años de Garantía en Productos Seleccionados
  • Asesoria Profesional
Pago seguro con
  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

General Specifications
  • Device Type: dc Block
  • Interface: 7-16 DIN Female
  • Interface 2: 7-16 DIN Male
  • Harmonized System (HS) Code: 854420 (Coaxial cable and other coaxial electric conductors)
Electrical Specifications
  • Operating Frequency Band:
    - 1710 – 2000 MHz
    - 2000 – 2170 MHz
    - 806 – 960 MHz
    - 960 – 1710 MHz
  • 3rd Order IMD   -117.0 dBm   |   -160.0 dBc
  • 3rd Order IMD Test Method   Two +43 dBm carriers
  • Average Power   3000.0 W @ 900 MHz
Physical Characeristics
  • Dimensions (Height x Length x Width);
    (74.23 mm x 76.97 mm x 36.07 mm) |   (2.92 in x  3.03 in x 1.42 in)
  • Weight   434.99 g   |   0.96 lb
  • Attenuation, Ambient Temperature   20 °C   |   68 °F
  • Average Power, Ambient Temperature   40 °C   |   104 °F
