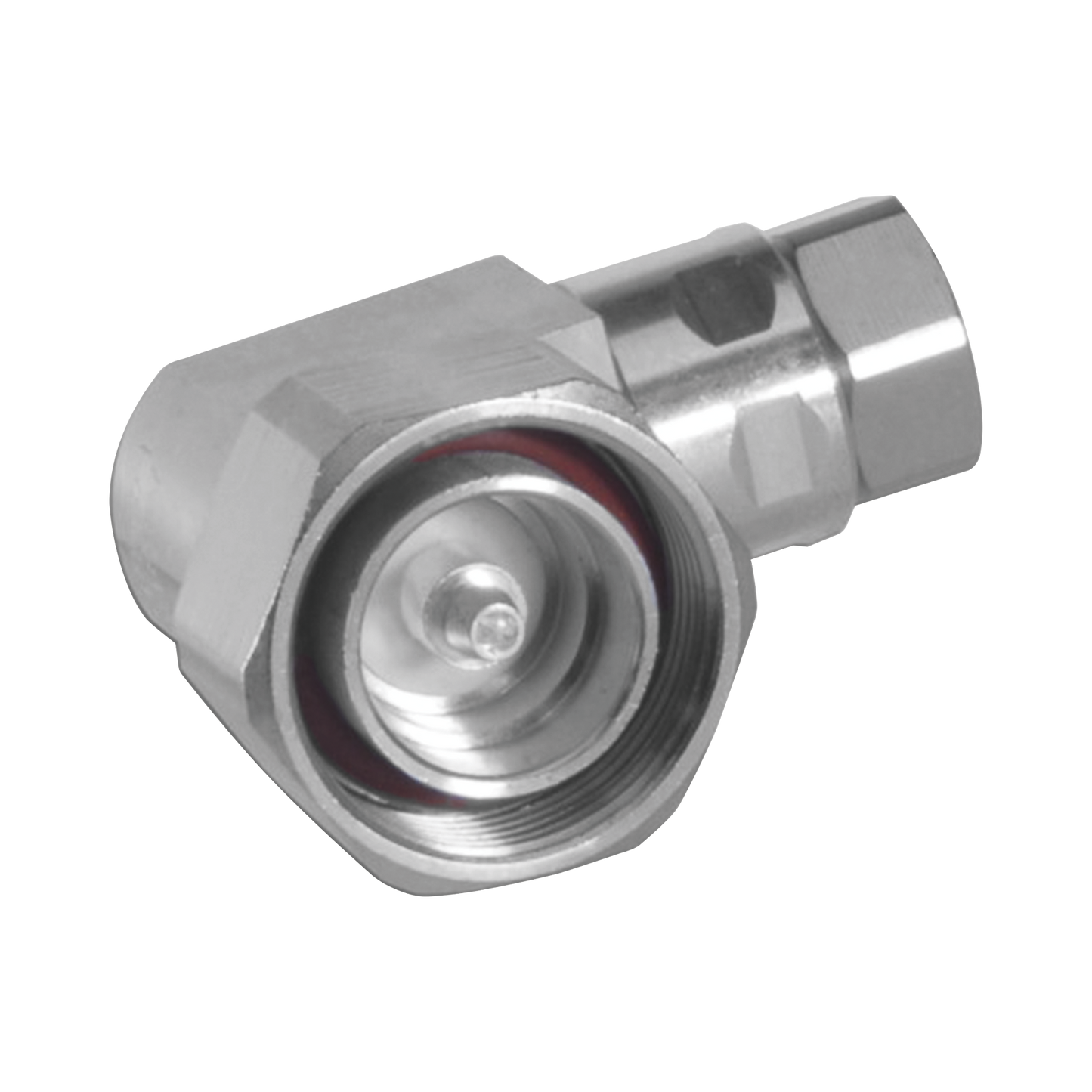

Conector DIN 7-16 Macho De Angulo Recto Para Cable FSJ450B
SKU:F4DR-C
Regular price
$ 1,191.44 MXN
Sale price
$ 1,191.44 MXN
Regular price
Unit price
per
Sale
Sold out
Tax included.
Shipping calculated at checkout.
- Envío Express
- Hasta 5 Años de Garantía en Productos Seleccionados
- Asesoria Profesional
Couldn't load pickup availability
Pago seguro con
Payment methods
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 7500 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD, typical | -120 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| RF Operating Voltage, maximum (vrms) | 884.00 V |
| dc Test Voltage | 2500 V |
| Outer Contact Resistance, maximum | 1.50 mOhm |
| Inner Contact Resistance, maximum | 0.80 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Average Power | 1.0 kW @ 900 MHz |
| Peak Power, maximum | 15.60 kW |
Insertion Loss, typical
| 0.05 dB |
| Shielding Effectiveness | -110 dB |
