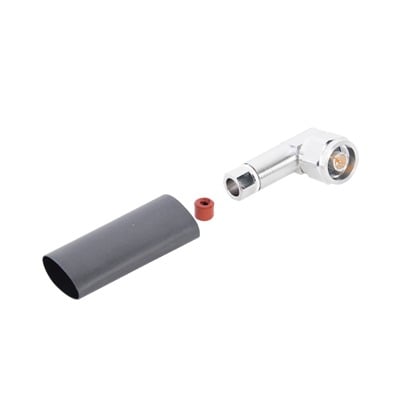

Conector N Macho en ángulo recto para cable FSJ1-50A

F1TNR-HC

$ 928.21 MXN
$ 928.21 MXN
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Envío Express
  • Hasta 5 Años de Garantía en Productos Seleccionados
  • Asesoria Profesional
Pago seguro con
  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa


General Specifications
Interface N Male
Body Style Right angle
Brand HELIAX®
Mounting Angle Right angle

Electrical Specifications
Connector Impedance 50 ohm
Operating Frequency Band 0 – 6000 MHz
Cable Impedance 50 ohm
3rd Order IMD, typical 112
dBm @ 910 MHz
3rd Order IMD Test Method Two +43 dBm carriers
RF Operating Voltage, maximum (vrms) 565.00 V
dc Test Voltage 1600 V
Outer Contact Resistance, maximum 0.25 mOhm
Inner Contact Resistance, maximum 1.00 mOhm
Insulation Resistance, minimum 5000 MOhm
Average Power 0.4 kW @ 900 MHz
Peak Power, maximum 6.40 kW
Shielding Effectiveness 110
dB
